Place of Origin:
Guangdong, China
Brand Name:
NAKKA
Model Number:
FW45-DC17ARL
Power (W):
90
Voltage (V):
220
After-sales Service Provided:
Free spare parts, Return and Replacement
Warranty:
1 Year
Type:
Air Cooling Fan
Material:
Metal
Installation:
Wall Mounted
Certification:
CB, ce, EMC, GS, RoHS, ERP
Application:
Hotel, Garage, Commercial, Household
Power Source:
Electric, Electric
EC Motor:
6 speeds, 9 hours timer
RPM:
minimum RPM=200r/min, maximum RPM=850r/min
Maxmum Air Volume:
170m3/min
Remote Control:
Hz433 RF, with learning function
$76.10
$74.80
$73.50
$72.20
|
Product Name |

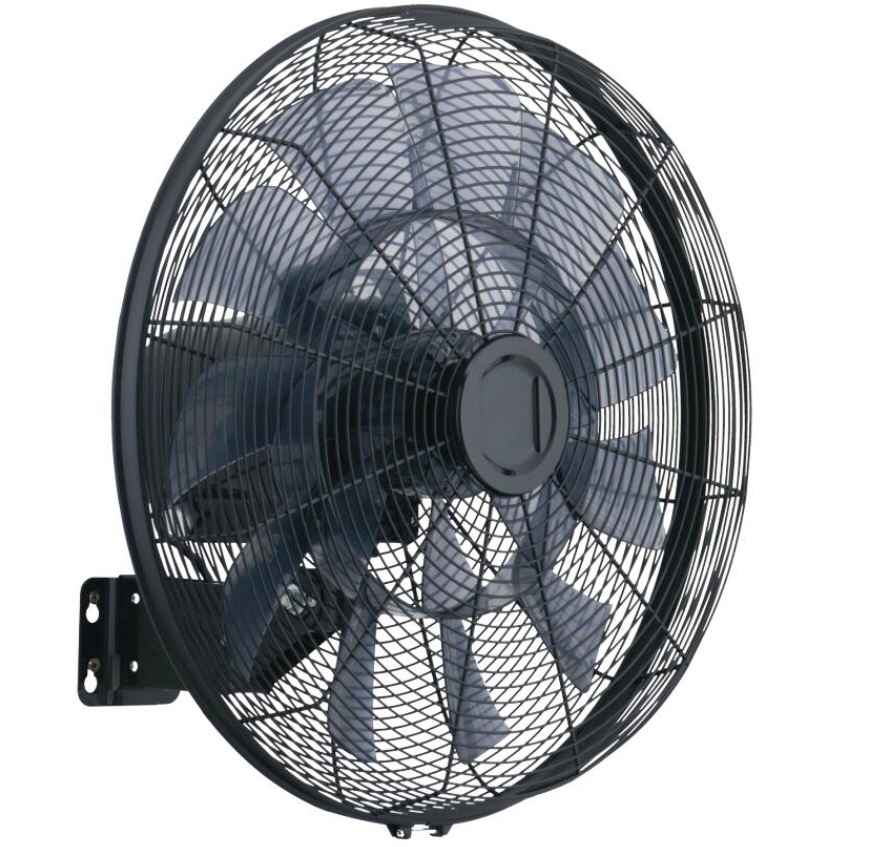

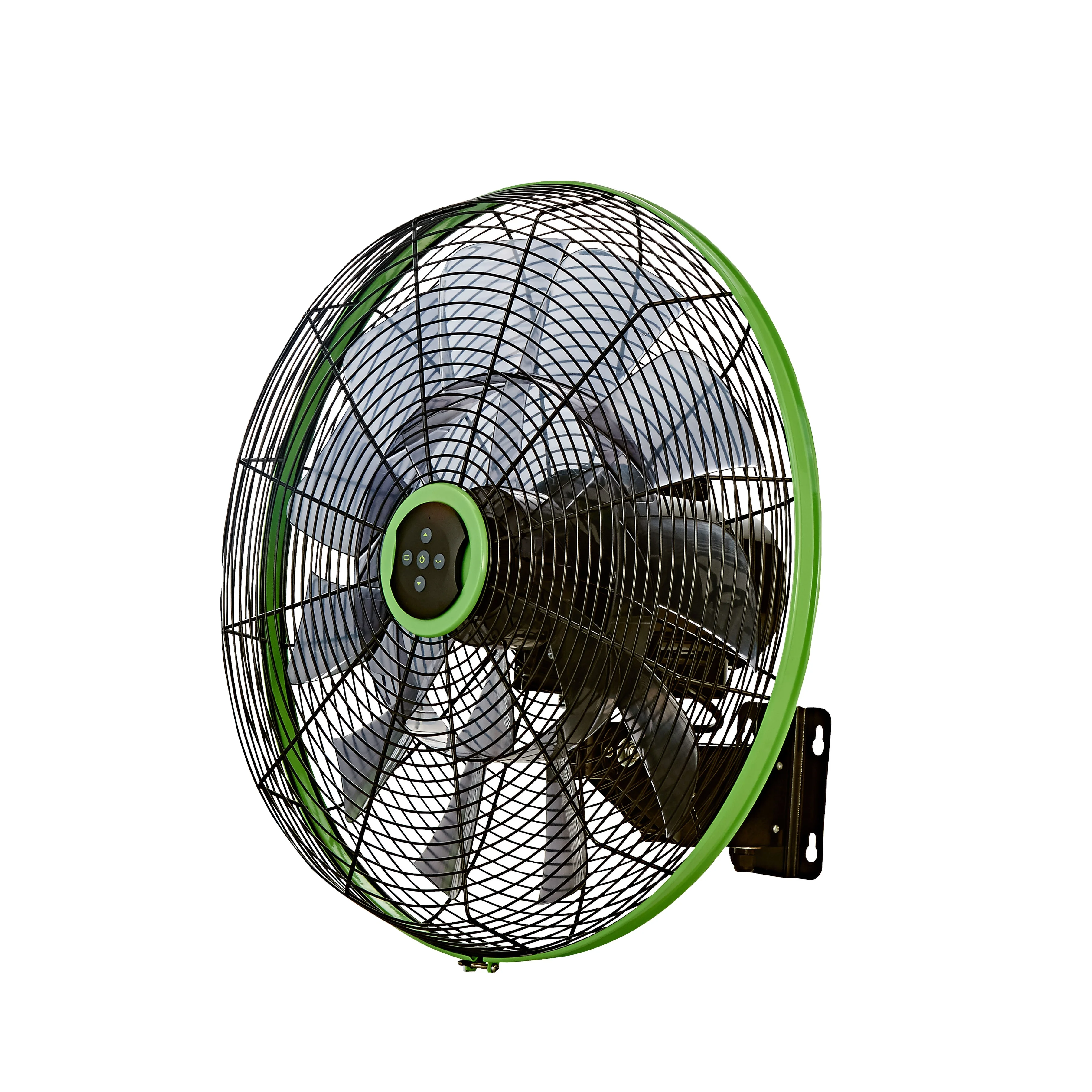

NAKKA 18 inch EC wall fan |
|
Model NO. |
FW45-DC17ARL |
|
Certification |
CE(EMC,LVD,RoHS), ERP, RED, CB |
|
Electrical Parameter |
|
|

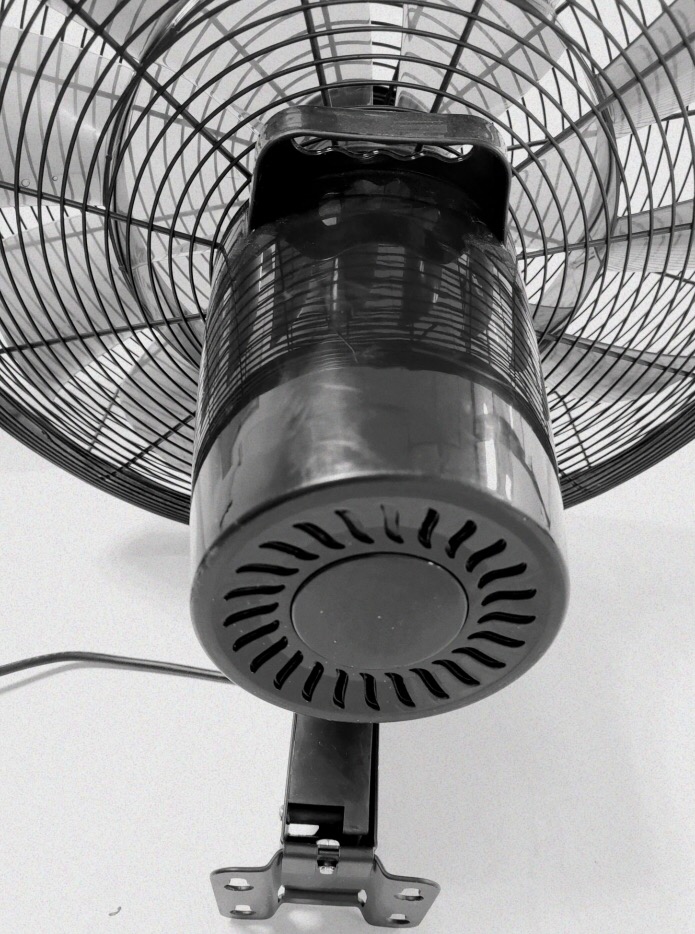

EC Motor |
EC motor without Holzer brushless, High performance, Fully sealed, Brushless, 8 speeds, 9 hours timer |
|
Input |
220v,50/60Hz, |
|
Maxmum Power |
3w-90w |
|
ERP |
1.92(m³/min)/w |
|
RPM |
minimum RPM=200r/min, maximum RPM=850r/min |
|
Maxmum Air Volume |
170m³/min, |
|
Remote Control |
Hz433 RF， with learning function |
|
Performance |
|
|
Grill |

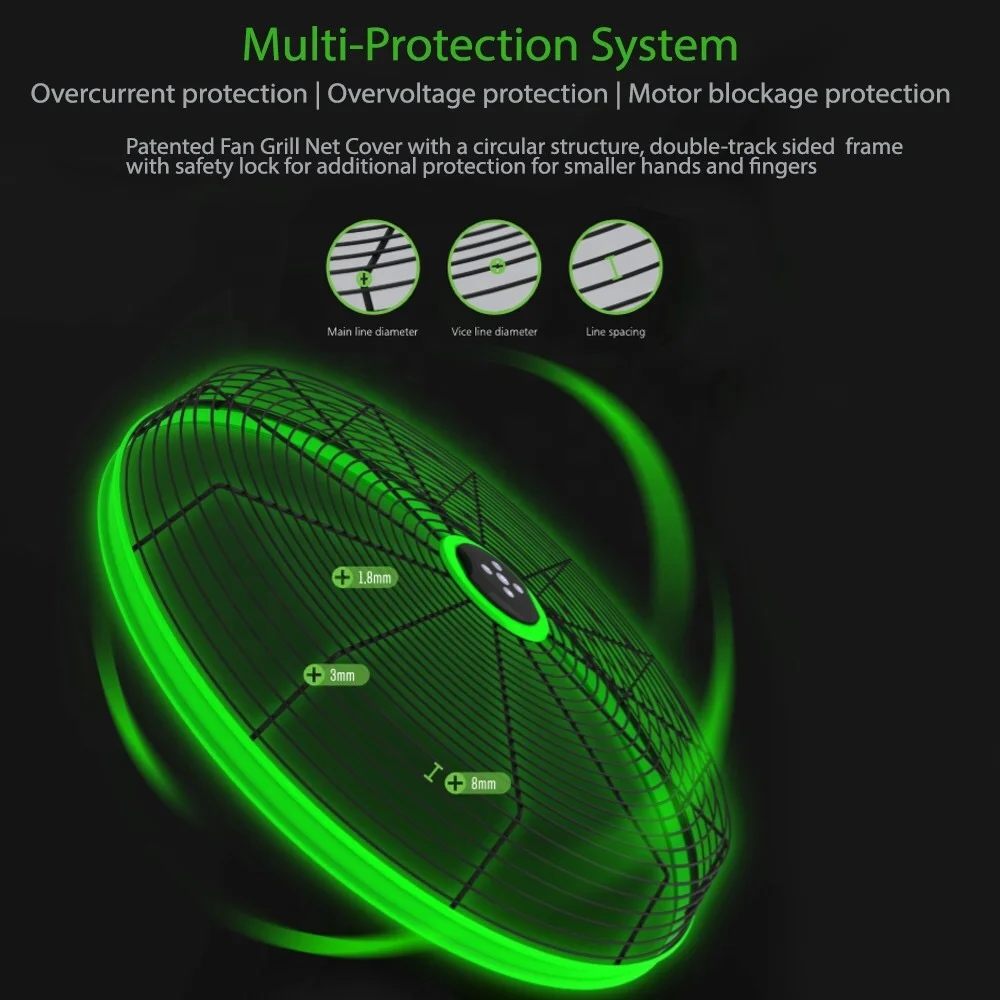

18 inch 12 lines strong grill with green frame (pass the finger testing ) |
|
Blade |
18 inch 18 blades design ( lowest noise , max air volume) noise 56db |
|
Base |

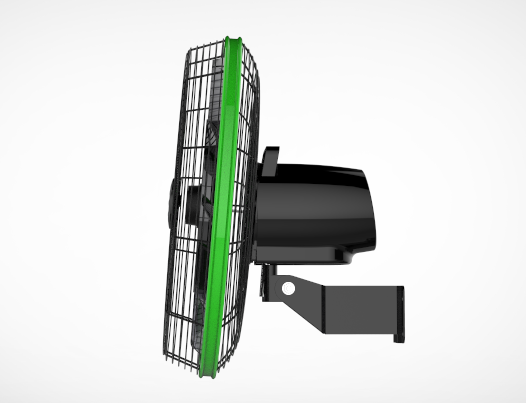

wall fan frame |
|
Power cord |
3*0.5mm 100% copper power line( The leakage length of the power line is 1.8m) |
|
Plug |
Optional |
|
Packing info and MOQ |
|
|
Packing size |
52.5*28*54 cm , One box one fan ( one 40HQ can load about 890pcs) |
|
Net Weight |
5.7kg |
|
Gross Weight |
7.6kg |
|
HS Code |
8414519200 |
|
MOQ |
MOQ 200 pcs |
Details Images
